CM two circle reflection goniometer



Tecam (Techne Limited, Duxford, Cambridge)

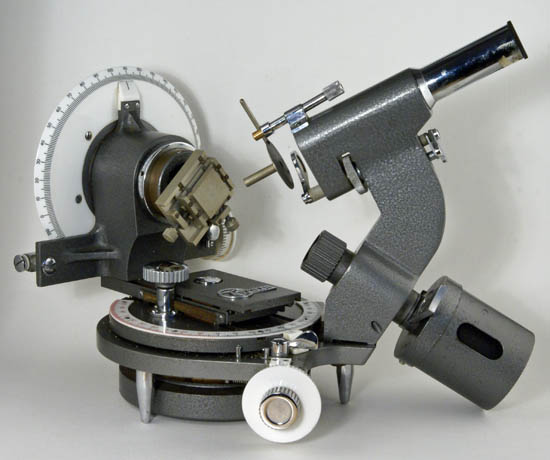

CM two circle reflecting goniometer (lacquered cast iron, chromium plated brass and plastic) with graduated circles (diameter: 15 cm) and vernier read-out, telescope, build in light source, adjusting wheels, and goniometer head. Collimator and telescope are in a plane perpendicular to the horizontal circle. Height 26 cm.
Marked "Tecam" on the base, ca. 1960.

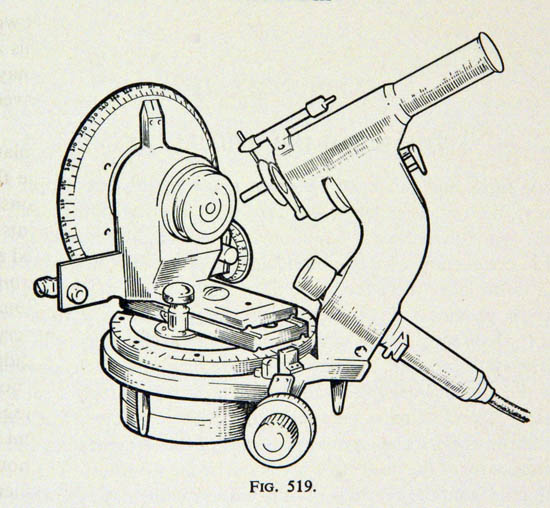

According to Terpstra  and Codd (1961) the CM two-circle goniometer is "designed by L.W. Codd and W.T. Moore of  Imperial Chemical Industries Limited and manufactured by Techne Limited, Duxford, Cambridge". The instrument is also depicted (see figure below) in Phillips (1963).

private collection

CM two circle reflection goniometer

CM two circle reflection goniometer

References:
  • P. Terpstra and L.W. Codd (1961) Crystallometry, Longmans, J.B. Wolters, Groningen, p. 382-386
  • F.C. Phillips (1963) An Introduction to Crystallography, Longmans, London, p. 314-315 (fig. 519)
